PTG Products
Solutions for Complex Facilities Across the United States
Engineering Expertise Meets Manufacturing Precision
Engineering & Manufacturing Together
By combining sheet metal fabrication, electrical controls, and advanced assembly under one roof, PTG maintains quality and schedule control. This integrated approach enables prefabricated, plug-and-play deliveries that reduce site hours, simplify commissioning, and support faster validation.

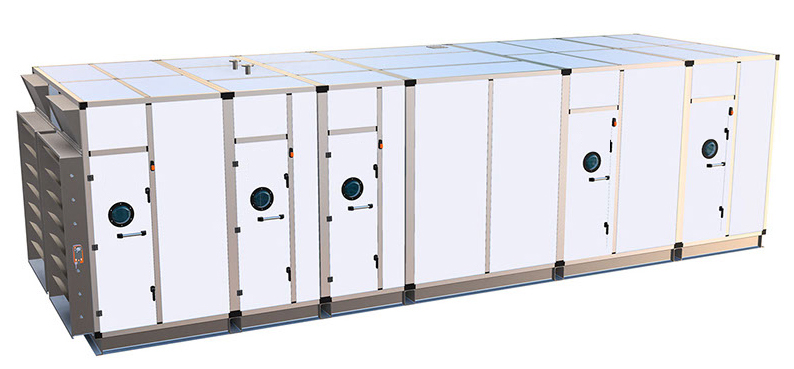

AHU Lines
- PTA (Aluminum Frame)
- Capacity range up to 100,000 CFM
- Flexible dimensions
- Full equipment service
- Integrated vestibule (Optionally)
- Cabinet Materials: Gal. G90, SS304L, SS316L, Aluminum or combination of above-mentioned materials.
- Insulation: Fiberglass or Injected Polyurethane Foam
Panels thickness: 2”, 2 ½” - High level of acoustic performance is available
- Cabinet tested at 15” WG Static Pressure according to AHRI – 1350 for structure stability, leakage and thermal brake.
- SS sloped drain pans system
- Welded / Bolted / Riveted base structure
- Finish: Mill finish or powder-coated or antimicrobial powder coating are available
- Waterproof protection for Outdoor Units.
- High quality, low leakage service doors with Test Ports and inspection window are available.

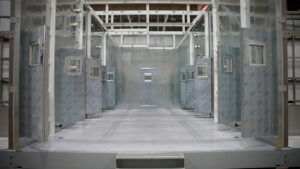

- Clean Room construction is available with round corners and 2 ½” panels
- Unit drainage system is available
- Single Fan or Fans Array are available, AC & EC
- Floor Liner – Galvanized Powder Coated or Aluminum checker plate.
- Each Section include lighting fixture marine or LED type.
- Capacity range up to 250,000 CFM
- Flexible dimensions
- Full equipment service
- Integrated Vestibule (Optionally)
- Cabinet Materials: Gal. G90, SS304L, SS316L, Aluminum or combination of above-mentioned materials.
- Insulation: Fiberglass or Injected Polyurethane Foam
- Panels thickness: 2”, 2 ½”, 3”, 4”.
- High level of acoustic performance is available.
- Cabinet tested at 12” WG Static Pressure according to AHRI – 1350 for structure stability, leakage and thermal brake.
- SS sloped drain pans system
- Welded / Bolted / Riveted base structure
- Finish: Mill finish or powder-coated or antimicrobial powder coating are available
- Waterproof protection for Outdoor Units.
- High quality, low leakage service doors with Test
- Ports and inspection window are available.
- Clean Room construction is available
- Unit drainage system is available
- Single Fan or Fans Array are available, AC & EC
- Floor Liner – Galvanized Powder Coated or Aluminum checker plate.
- Each Section include lighting fixture marine or LED type.
- Need text
- Need text
An Air Handling Unit (AHU) is a large metal box-shaped device that regulates and circulates air as part of a heating, ventilating, and air-conditioning (HVAC) system. It collects, filters, heats or cools, and dehumidifies air before distributing it throughout a building via ductwork.
AHUs act as the “heart” of central air conditioning, often installed on roofs or in mechanical rooms. AHUs are essential for maintaining, filtering, and controlling the temperature of the air in large, occupied indoor spaces.
AHU dampers and vacuum brakes are two entirely different technologies used for controlling airflow in HVAC systems and controlling motion in transportation/industrial machinery, respectively.
They control indoor air quality, temperature, and ventilation by balancing air intake and exhaust. AHU dampers control how much air moves through a building’s heating and cooling system, while vacuum brakes use air pressure differences to control the movement of heavy machinery or trains.
AHU (Air Handling Unit) filtration is the process of cleaning air within a centralized HVAC system, using filters to remove pollutants, dust, and microorganisms from outdoor air and recirculated indoor air before it is distributed throughout a building. It serves as the primary barrier for indoor air quality and protects HVAC components.
he main goal is to improve indoor air quality (IAQ) by trapping contaminants such as dust, pollen, mold spores, and bacteria, and to keep the HVAC system clean for better efficiency. Filters are located inside the AHU, usually positioned before the heating/cooling coils and fan to treat air before it enters the building’s ductwork.
An AHU (Air Handling Unit) heating coil is a heat exchanger component within an air handling unit designed to increase the temperature of air as it passes through the system before being distributed throughout a building. These coils heat air using sources like hot water, steam, or electric resistance, ensuring comfortable indoor temperatures.
AHU Heating Coils raise the air temperature to a set point, often used for comfort heating or reheating air that has been over-cooled for dehumidification. These coils are critical for climate control in medium to large commercial or industrial buildings.
An Air Handling Unit (AHU) is a central HVAC component that conditions and circulates air within a building as part of a larger heating, ventilation, and air conditioning system. It draws in fresh outdoor air, filters it, heats or cools it, and controls humidity, before distributing it through ductwork throughout the building.
AHU Ventilation provides healthy indoor air quality by managing fresh air, filtering out particulates, and controlling temperature and humidity. AHUs are often called “ventilation units” because they represent the primary equipment for air movement and renewal in buildings.
AHU silencers, also known as sound attenuators or duct mufflers, are acoustic components installed in heating, ventilation, and air conditioning (HVAC) systems to reduce noise generated by air handling units (AHUs). They are typically installed directly upstream or downstream of the fan to mitigate noise from air movement, vibration, and mechanical operation.
AHU Silencers prevent noise from traveling through ductwork into occupied spaces such as offices, hospitals, and residential buildings. Their effectiveness is determined by insertion loss (noise reduction), pressure drop (airflow resistance), and self-generated noise.
An Air Handling Unit (AHU) base, often called an AHU curb, mounting base, or housekeeping pad, is the structural foundation upon which an air handling unit rests. It provides necessary support, ensures proper airflow clearance, and often helps manage vibration, typically positioning the unit on rooftops, in mechanical rooms, or on concrete floors.
AHU Bases distribute the weight of the large, metal AHU housing evenly, preventing damage to the roof or floor. They provides necessary height for access to lower-level components and piping connections.
An AHU floor (or AHU room/area) is a designated space in a building, often a mechanical room, basement, or rooftop. housing one or more large Air Handling Units (AHUs). These units filter, heat, cool, and circulate air throughout specific zones or the entire building, acting as the heart of the central HVAC system.
AHUs manage air quality and climate control, taking in outside air and return air to provide comfort and ventilation. These rooms or floors are often designed with sound insulation to mitigate the noise from high-powered fans.
An Air Handling Unit (AHU) is a large, metal box-shaped device used in HVAC systems to condition and circulate air within buildings. Its structure is modular, usually consisting of a fan, filters, heating/cooling coils, and dampers, designed to regulate temperature, humidity, and air purity by pulling in fresh air, treating it, and distributing it via ductwork.
The outer casing, often modular (split) to allow for customization, containing all components. AHUs are essential for maintaining indoor air quality and comfort in large commercial spaces, hospitals, and factories.
AHU panels are the modular, insulated “sandwich” panels that form the exterior casing or housing of an Air Handling Unit (AHU). These panels protect internal components (fans, coils, filters) and provide thermal/acoustic insulation to ensure energy efficiency in HVAC systems. They typically consist of double-skin metal with insulation between, often on roofs or in utility rooms.
Our AHU Panels are usually a “double skin” design, comprised of aluminum. These panels allow the AHU to operate efficiently by maintaining a stable internal climate, preventing condensation, and reducing noise in industrial and commercial building setups.
Air Handling Unit (AHU) doors are specialized access panels on HVAC units that provide secure, insulated, and airtight entry for inspecting and maintaining internal components like filters, coils, and fans. These doors are crucial for energy efficiency, noise reduction, and safety, allowing technicians to quickly service the equipment.
Designed for quick entry to interior components, or AHU units feature durable hinges and latching mechanisms. Available in various types tailored for specific needs, such as hinged, removable, or specialized sizes for large units.

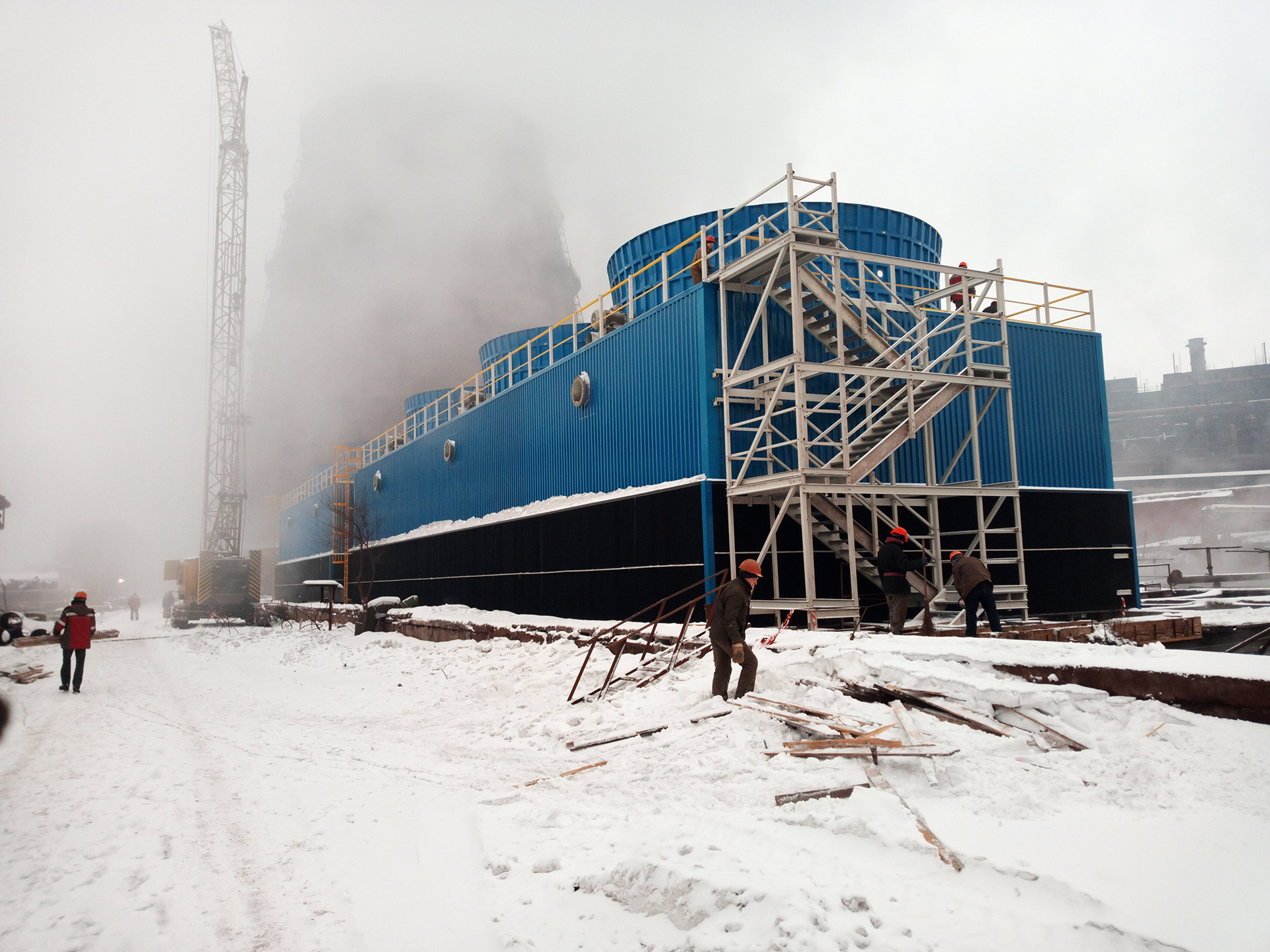

Cooling Towers
YWCT designs and manufactures durable, high‑performance cooling tower solutions engineered for the demanding conditions of industrial cooling. With decades of experience across both modular and large field‑erected systems, we combine advanced fiberglass construction, precise engineering, and efficient installation practices to deliver reliable cooling performance with minimal operational disruption.
Whether adapting to existing site conditions or supporting major new installations, YWCT provides proven, long‑lasting solutions built to meet complex industrial requirements.
Built for Your Specification
YWCT brings more than 60 years of cooling‑tower expertise, including over three decades of experience utilizing advanced pultruded FRP construction. Our towers are engineered for long‑term durability in demanding industrial environments and can be custom‑fit to existing concrete basins for fast, low‑disruption replacement projects. Delivered to the site in modular sections, installation can often be completed in just a few days instead of weeks. Available in both counterflow and crossflow configurations, YWCT’s solutions provide reliable, corrosion‑resistant performance for a wide range of industrial cooling needs.
- Certified Performance: Our towers are engineered to meet the highest industry standards and are currently CTI certified per STD-201 (Pending).
- Advanced Materials: Constructed from pultruded FRP (Fiberglass Reinforced Polyester), our towers offer a superior strength-to-weight ratio. They are naturally corrosion-resistant and secured using high-grade Stainless Steel (SS) hardware.
- Integral Basin: Unlike many competing solutions, YWCT’s modular towers feature an integrated FRP basin with a depth of up to 3.5 feet, providing a robust, leak-proof foundation.

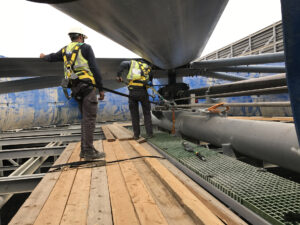

YWCT offers heavy‑duty field‑erected cooling tower solutions engineered to meet the highest industrial heat‑load demands. With decades of experience in large‑scale fiberglass construction, our field‑erected towers are built to perform in the harsh, wet, and corrosive environments typical of industrial cooling. We custom‑engineer each system to match existing concrete basins and footprints, enabling efficient replacement of aging structures with minimal downtime. Designed for both new construction and retrofit applications, YWCT delivers reliable, long‑term cooling performance across a wide range of industrial facilities.
- Custom Fit & Rapid Replacement: YWCT engineers each tower to align precisely with existing concrete basins and site footprints, streamlining retrofits and enabling swift transitions with minimal operational disruption.
- Heavy‑Duty FRP Construction: Built from continuous pultruded FRP sections, our field‑erected towers provide exceptional strength, corrosion resistance, and UV stability—ensuring long‑term structural integrity in demanding industrial environments.
- Scalable, Large‑Format Designs: With single‑cell sizes ranging from 20′ x 20′ to 52′ x 52′, our towers accommodate cooling duties from 4,500 GPM up to 450,000 GPM, supporting both new builds and large‑scale industrial upgrades with efficient on‑site execution.
FRP
Fiberglass Reinforced Plastic (FRP) is a composite material made of fiberglass reinforcement combined with thermosetting resins. This combination creates a lightweight material with excellent mechanical strength, high corrosion resistance, and long-term durability. FRP is widely used in industrial environments where traditional materials such as steel or concrete may suffer from corrosion, chemical attack, or high maintenance requirements. Its resistance to aggressive chemicals, low weight, and long service life make it an ideal solution for piping systems used in demanding industrial applications.

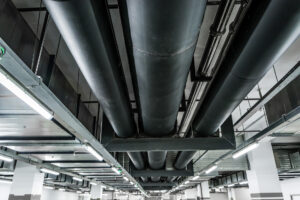

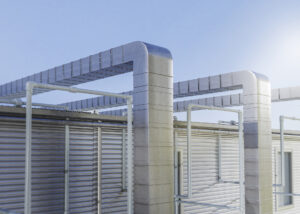

Our production process focuses on the manufacturing of large-diameter FRP Ducts and fittings, including elbows, flanges, and ducts, designed for specific pressures, temperatures, and chemical environments.
The products are manufactured using semi-automatic computerized filament winding machines, where the ratio between resin, hardener, and fiberglass reinforcement is precisely predetermined and continuously controlled to ensure consistent quality and high mechanical performance.
Using advanced winding technology, we manufacture Ducts, elbows, flanges, and ducting systems with diameters exceeding 3,000 mm. The computerized winding process controls fiber placement and resin content to achieve the required structural strength and chemical resistance for demanding industrial applications.
Our production also includes FM Approved FRP Ducts systems, manufactured in accordance with FM Global standards for fire protection and industrial applications.
FM Approval confirms that the piping systems have been independently tested and meet strict requirements for structural strength, reliability, and long-term performance.
For customers, using FM Approved Ducts systems ensures compliance with international safety and insurance standards, simplifies project approvals, and provides a reliable solution for critical industrial facilities.
FRP tanks are manufactured using advanced filament winding technology, combining fiberglass reinforcement with high-performance resins to create strong, lightweight, and corrosion-resistant storage solutions.
These tanks are designed for the storage of water, chemicals, and industrial liquids, and can be customized for different pressures, temperatures, and chemical environments.
The manufacturing process ensures precise control of fiber orientation and resin content, resulting in tanks with high structural strength, excellent corrosion resistance, and long service life. Tanks can be produced in large diameters up to 6 meters and tailored to specific project requirements.
Need text

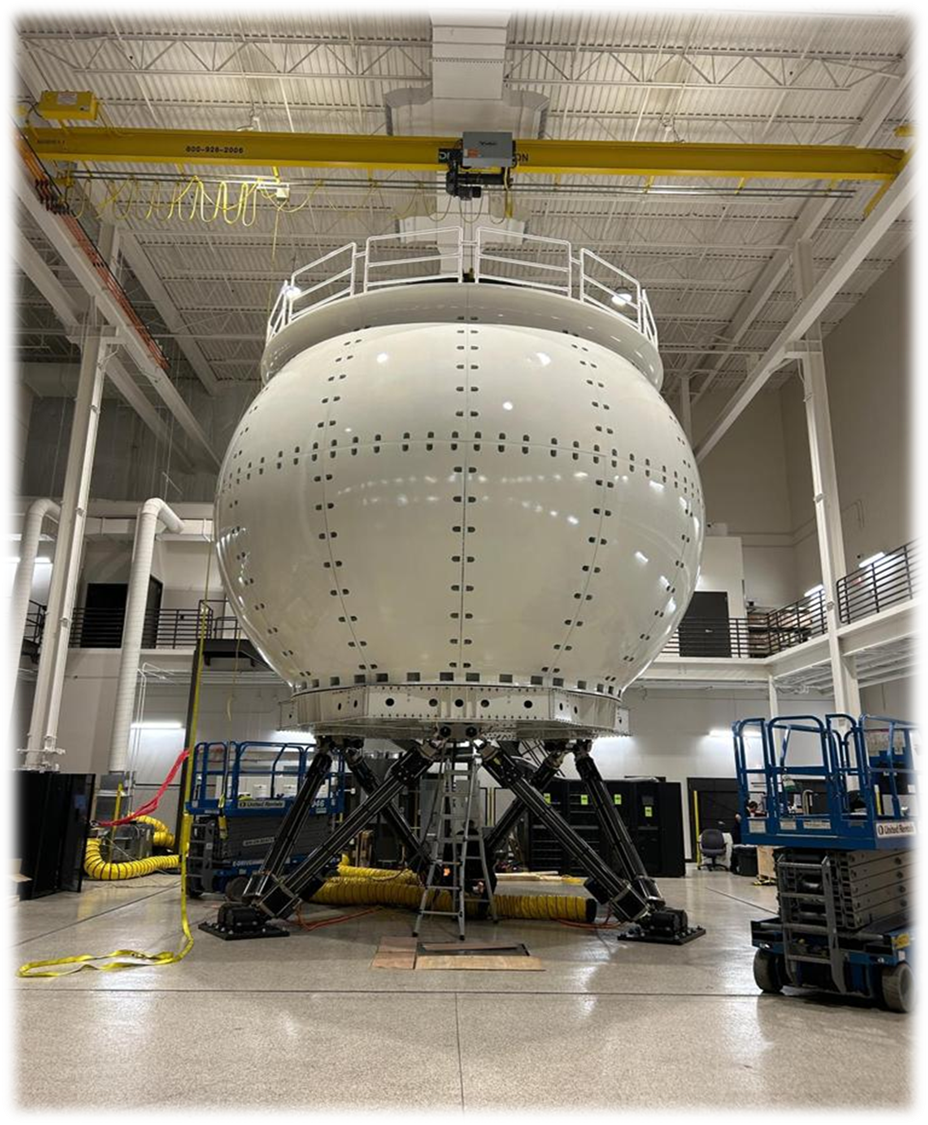

We specialize in advanced closed-mold fabrication using RTM (Resin Transfer Moulding) and Vacuum Infusion to deliver high-performance composite components. These technologies offer a superior alternative to traditional molding by ensuring extreme dimensional accuracy, a “Class A” double-sided smooth finish, and an optimized strength-to-weight ratio. Whether producing complex, small-scale engineering parts or large structural assemblies, our RTM-driven process guarantees repeatable quality, excellent corrosion resistance, and a cost-effective transition from prototyping to full-scale serial production.
